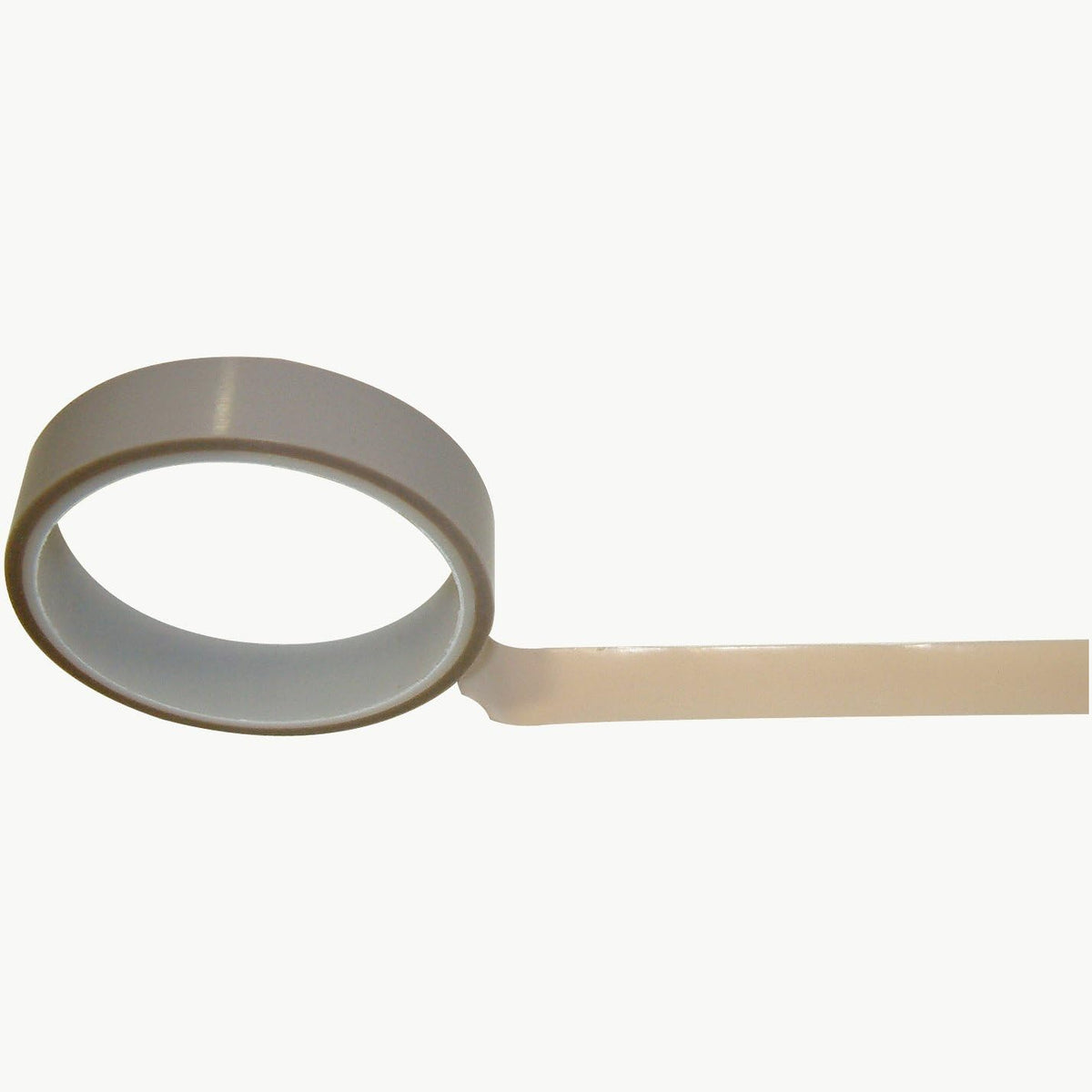

Skived PTFE Film Tape 5 mil, 1 in. x 36 yds. P55163
Skived PTFE Film Tape 5 mil, 1 in. x 36 yds. P55163
JVCC PTFE-5 Skived PTFE Film Tape is a 5 mil pure skived Teflon PTFE film tape with a high-temperature silicone adhesive. It comes self-wound without a liner.
Used in electrical applications such as harness/coil wraps & separators, transformers and slot liners where good insulation and heat resistance are required.
Also used in mechanical applications such as heat sealing bars & jaws, labeling machine pressure pads, chute liners, anti-friction devices, bearings, forming dies, aircraft mold release & guide rails where high temperature, maximum slip and lubricity are required.
High elongation of PTFE-5 permits tight wrapping and conforms to sharp bends/irregular surfaces.
Carrier/Backing: polytetrafluoroethylene (PTFE) film / pure skived. Adhesive: silicone. Thickness: 7.2 mils (carrier, adhesive) 5 mils (carrier). Adhesion: 30 ounces per inch (to stainless steel test panel). Tensile Strength: 15 pounds per inch (longitudinal). Dielectric Breakdown: 12000 volts. Service/Operating Temperature: -100F to 500F. Elongation: 200%. Core: 3-inch diameter.
JVCC PTFE-5 Skived PTFE Film Tape is a 5 mil pure skived PTFE film tape with a high temperature silicone adhesive. It comes self-wound without a liner. Used in electrical applications such as harness/coil wraps & separators, transformers and slot liners where good insulation and heat resistance are required. Also used in mechanical applications such as heat sealing bars & jaws, labeling machine pressure pads, chute liners, anti-friction devices, bearings, forming dies, aircraft mold release & guide rails where high temperature, maximum slip, and lubricity are required. High elongation of PTFE-5 permits tight wrapping and conforms to sharp bends/irregular surfaces. Made in the U.S.
NOTES: Sizes shipped will typically be the tape industry standard metric-cut sizes, i.e. 24mm for each 1 inch of nominal tape width ordered (rolls are approximately 5% narrower than the nominal size). This product's actual size is 25.4mm wide. This tape is typically cut to width from log rolls so most sizes ship on non-branded plain white cores. As with any adhesive tape product it is always the user's responsibility to determine that the product is suitable for their intended use; e.g. if you want to remove a product cleanly from a specific type of substrate please test on an inconspicuous area first. The color name grey can also be spelled as gray.Technical Information- Core: 3 inch diameter
- Backing/Carrier: polytetrafluoroethylene (PTFE) film / pure skived
- Adhesive: silicone
- Thickness: 7.2 mils (carrier, adhesive) 5 mils (carrier)
- Adhesion: 30 ounces per inch (to stainless steel test panel)
- Tensile Strength: 15 pounds per inch (longitudinal)
- Dielectric Strength: 12000 volts
- Service/Operating Temperature: -100F to 500F
- Elongation: 200 %
