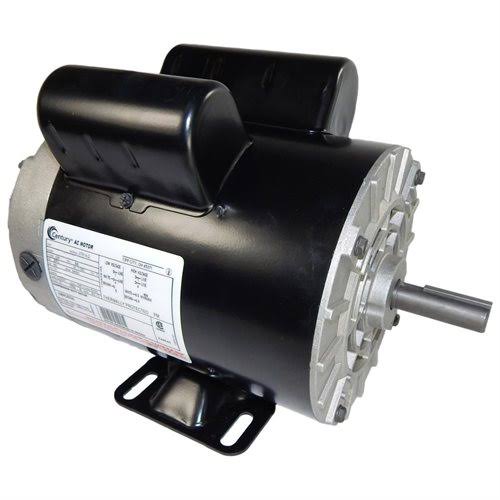

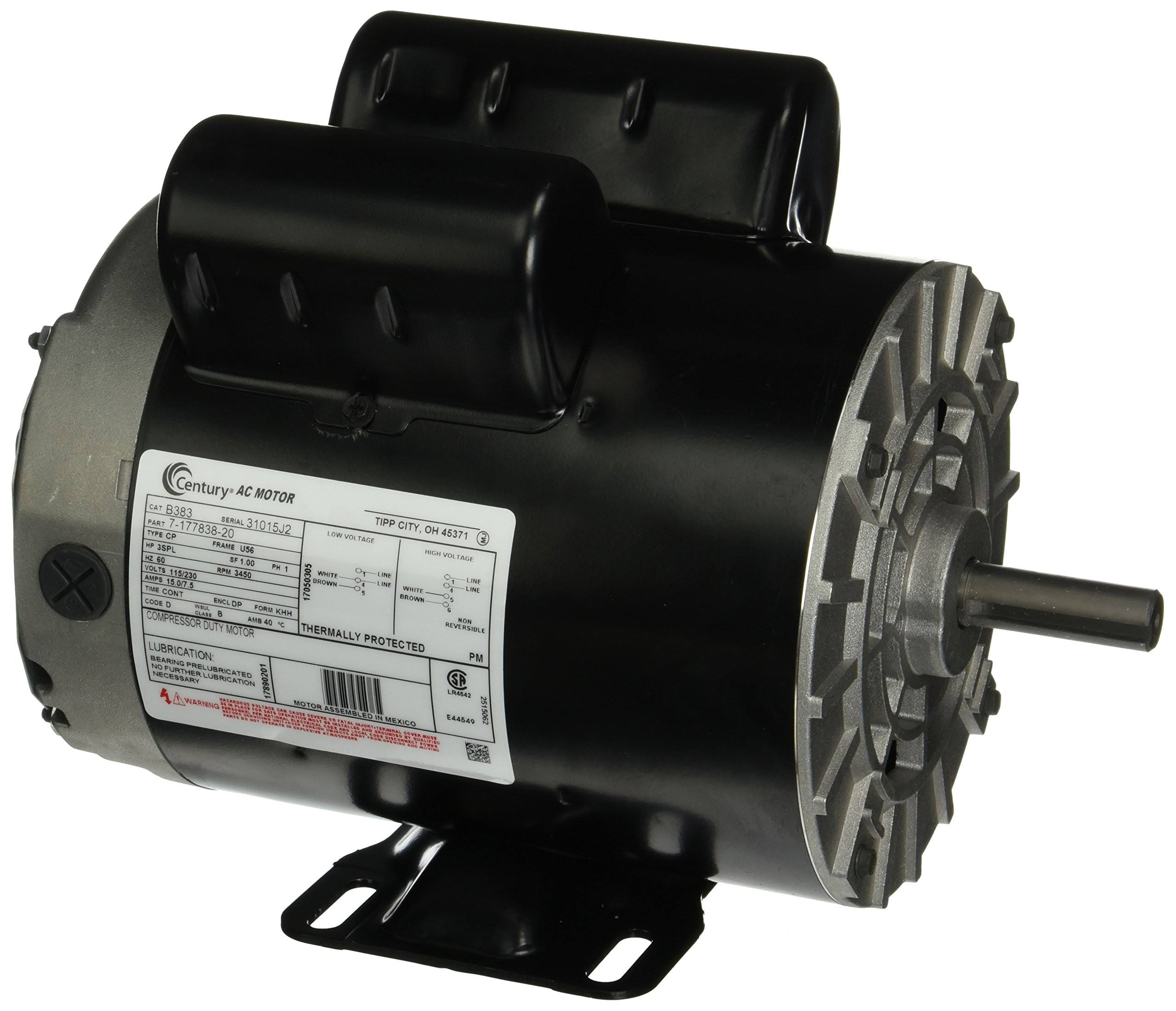

3 HP 3450 RPM 115/230V Air Compressor Motor D679503
Sale price
$23.99
Regular price $98.67
Skip to product information

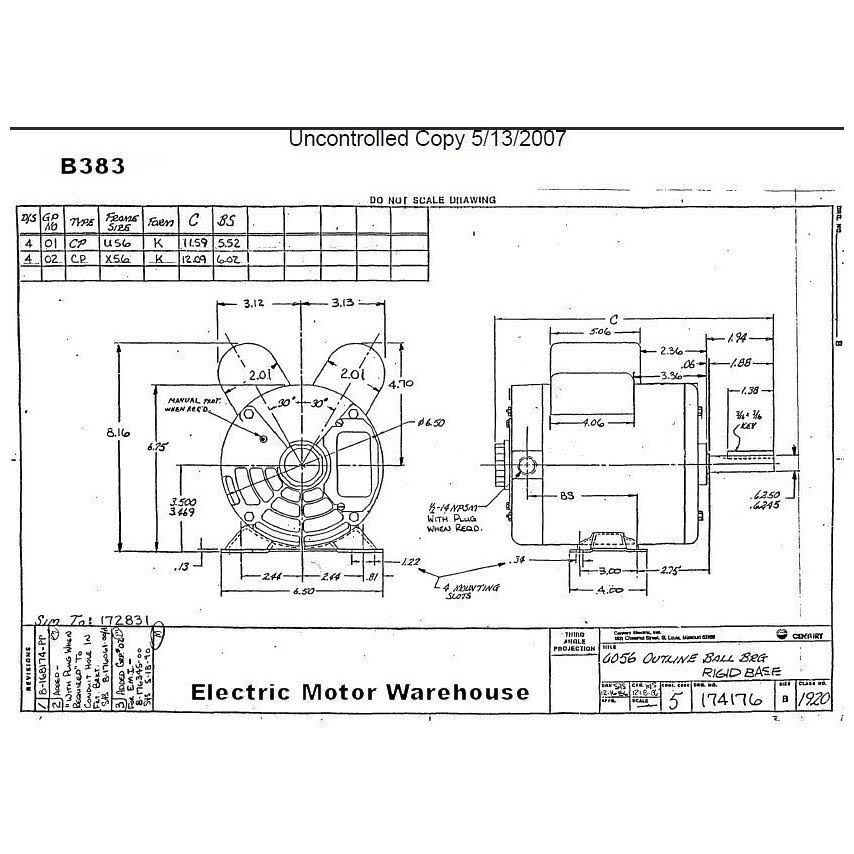

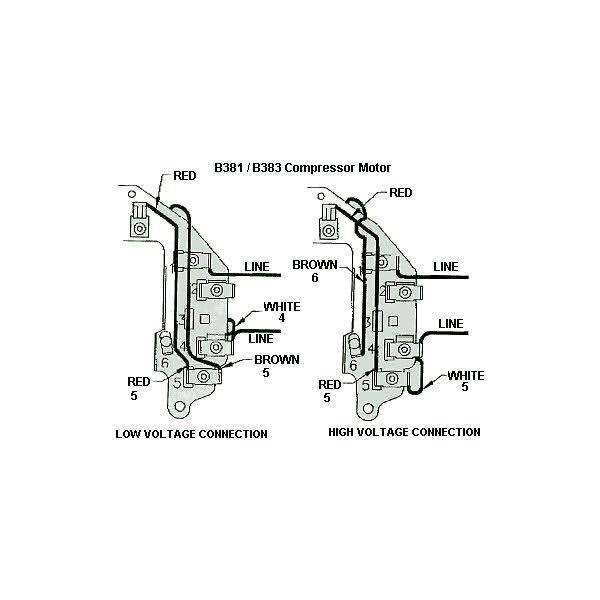

3 HP SPL 3450 RPM, 15.0/7.5 amps, 115/230V 60hz. The motor is designed to be used with a belt driven compressor. Not to be used where the motor is part of the compressor head. 56 Frame motor has a standard 3" x 5" bolt mounting pattern. Horsepower is designated as SPL. Not to be used where the mount is a pivot type mount. Overall motor length 11.59"; Motor connection diagram on motor name plate. Capacitor Start/Capacitor Run.
3 HP 3450 RPM 115/230V Air Compressor Motor D679503
Sale price
$23.99
Regular price $98.67
Shipping calculated at checkout.
